PREMIER SERIES CABINET CONSTRUCTION





Wellborn Cabinet’s Premier Series cabinet construction combines fashionable design elements with our Heirloom Quality.

  • Premier also provides a selection of decorative glass door cabinets for you to choose from.
  • Semi-custom offerings for added design flexibility
  • 5/8-inch wood dovetail drawer standard for increased durability
  • Soft close drawer slides
  • You Draw It program changes concepts into creations
  • Lifetime Limited Warranty

Standard Construction

Premier Standard Wall and Base Cabinet Construction information
Hinge
Additional Information Link
Top
Additional Information Link
Back
Additional Information Link
Hanging Rail
Additional Information Link
Shelves
Additional Information Link
Hanging Rail
Additional Information Link
Bottom
Additional Information Link
I-Beam
Additional Information Link
Hanging Rail
Additional Information Link
Drawer
Additional Information Link
Additional Information Link
Interior
Additional Information Link
Shelves
Additional Information Link
End Panel
Back
Additional Information Link
Hanging Rail
Additional Information Link
Additional Information Link
Bottom
Additional Information Link
Face Frame
Toe Kick
Additional Information Link

All Plywood Cabinet Construction

Premier All Plywood Wall and _Cabinet Construction information.
Hinge
Additional Information Link
Top
Additional Information Link
Hanging Rail
Additional Information Link
Hanging Rail
Additional Information Link
Hanging Rail
Additional Information Link
Back
Additional Information Link
Shelves
Additional Information Link
Bottom
Additional Information Link
I-Beam
Additional Information Link
Hanging Rail
Additional Information Link
Drawer
Additional Information Link
Additional Information Link
Interior
Additional Information Link
Shelves
Additional Information Link
End Panel
Back
Additional Information Link
Additional Information Link
Bottom
Additional Information Link
Face Frame
Toe Kick
Additional Information Link

Wall Cabinets

Premier Series wall or upper cabinets are 12 inches deep and 9 to 48 inches wide and 12 to 60 inches tall. We also offer a wide range of other Premier wall cabinets for you to select from.

Base Cabinets

Base cabinets, sometimes referred to as lower cabinets are available in 34 and 40-inch heights, they come in both 12 and 24-inch depths and range from 9 to 48 inches wide in 3-inch increments. Drawer base cabinets are available in widths from 12 to 42 inches wide. The Premier Series also offers base chef pantry cabinets in three styles, they are 24 inches deep, 34 inches high, and 36 inches wide. While talking with your local Wellborn dealer, ask about our base cooking center, another dynamic cabinet that places the tools you need right within reach.

Kitchen sink base cabinets are available in widths of 18 to 48 inches (in 3-inch increments). They are 34 inches high and 24 inches deep. The Premier Series also offers a 60-inch sink base cabinet which features two drawers, two drawer blanks and four doors, providing a wealth of storage space. Be sure to ask your local dealer about accessories that are available for these cabinets. They will help in making it easier to access items stored within. Premier offers farmhouse base cabinets that are 24 inches high, 24 inches deep, they are available in widths from 24 to 39-inchwide, in 3-inch increments. We also offer farmhouse base cabinets in 45 and 48-inch widths.

Tall Cabinets

Utility cabinets & pantry cabinets are available In 3-inch increments from 9 to 36-inch widths, heights range from 84 inches to 102 inches, In 3-inch increments, Utility cabinets with pantry kits installed, are available from 84 to 96-inch heights in 3-inch increments they are 24 inches deep and 18 and 36 inches wide. These are but a few of the tall cabinets offered in the Premier Series, ask your local Wellborn dealer about other tall cabinet offerings.

Bathroom Cabinetry for Your Home

Bathroom vanities are available in depths of 16, 18 and 21-inch depths, providing an option for bathrooms of all sizes. 16 inches deep vanities are 18 inches wide and 31 inches high. 18 and 21-inch deep vanity cabinets are available in heights of 31 and 34 inches and widths from 18 to 48 inches wide in 3-inch increments. Premier also offers 57 and 60-inch vanity sink cabinets and vanity sink cabinets with drawers that are available in widths from 24 to 72 inches.

Linen cabinets are available in heights from 84 inches to 102 inches and in 15, 18 and 24-inch widths. The Premier Series also offers 84 to 96-inch high tall angle cabinets for corners, they are 21 inches deep and let you take advantage of even the corner of your bathroom.

The Premier Series offers a variety of wall and base cabinets for you to choose from. To view specs of all the Premier cabinets available, as well as our accessories view our Premier Specification Catalog on the technical resources page.

Compare all product lines

*Not all door styles area available with all finishes orFinish Techniques . Ask your local Wellborn Dealer for specifics

CARB Compliant - Meets California current standards



PREMIER HINGE



Doors have 6-way adjustable, smooth close, WellLine ® concealed hinges


PREMIER ALL PLYWOOD CABINET HINGE



Doors have 6-way adjustable, smooth close, WellLine ® concealed hinges


PREMIER TOP



½” Wood grain laminated furniture board top and bottom


PREMIER ALL PLYWOOD CABINET TOP



½” Wood grain laminated plywood top and bottom


STANDARD CONSTRUCTION HANGING RAIL



11/16” x 3½” Wood grain laminated fiberboard hanging rails


STANDARD CONSTRUCTION HANGING RAIL



11/16” x 3½” Wood grain laminated fiberboard hanging rails


STANDARD CONSTRUCTION HANGING RAIL



11/16” x 3½” Wood grain laminated fiberboard hanging rails


PREMIER BACK



⅛” Wood grain printed MDF back


PREMIER ALL PLYWOOD CABINET BACK



316” Wood grain laminated plywood back


PREMIER SHELVES



3⁄4 ” Wood grain laminated furniture board adjustable shelves with edge banding; WellLock Shelf Clips®


PREMIER ALL PLYWOOD CABINET SHELVES



¾” Laminated plywood adjustable shelves with edge banding and WellLock Shelf Clips®


PREMIER BOTTOM



½” Wood grain laminated furniture board top and bottom


PREMIER ALL PLYWOOD CABINET BOTTOM



½” Wood grain laminated plywood top and bottom


PREMIER I-BEAM



½” x 3” I-Beam furniture board support dadoed into front, back and side


PREMIER ALL PLYWOOD CABINET I-BEAM



½” x 3” I-Beam plywood support dadoed into front, back and side


PREMIER HANGING RAIL



1116” x 3½” Wood grain laminated fiberboard hanging rails


PREMIER ALL PLYWOOD CABINET HANGING RAIL



34” x 3½” Laminated solid hard wood or plywood hanging rails


ALL PLYWOOD CONSTRUCTION HANGING RAIL



¾” x 3½” Laminated solid hardwood or Plywood hanging rails


ALL PLYWOOD CONSTRUCTION HANGING RAIL



¾” x 3½” Laminated solid hardwood or Plywood hanging rails


ALL PLYWOOD CONSTRUCTION HANGING RAIL



¾” x 3½” Laminated solid hardwood or Plywood hanging rails

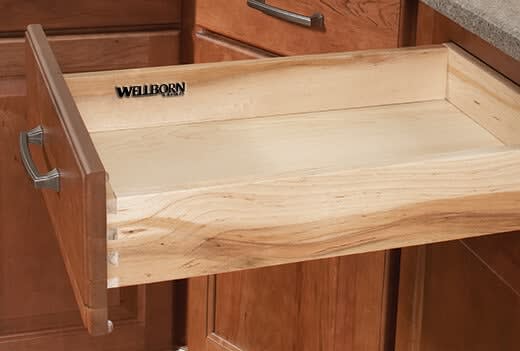

PREMIER DRAWER


  • 5/8-inch Solid hardwood drawer in a natural finish
  • 3/16-inch Laminated plywood drawer bottom
  • Dovetail construction
  • Full extension undermount drawer slides featuring soft close

The soft close feature provides an effortless, silent, smooth close which prevents the items in the drawer from shifting

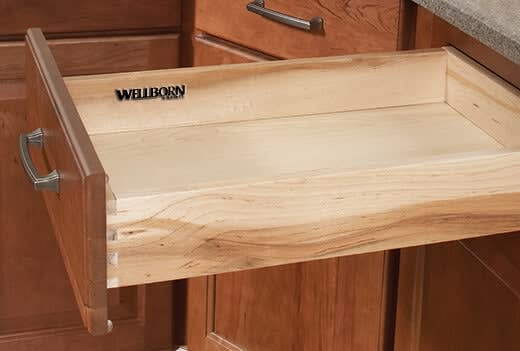

PREMIER ALL PLYWOOD CABINET DRAWER


  • 5/8-inch Solid hardwood dovetail drawer in a natural finish
  • 3/16 inch Laminated plywood drawer bottom
  • Dovetail construction
  • Full extension undermount drawer slides featuring soft close

The soft close feature provides an effortless, silent, smooth close which prevents the items in the drawer from shifting


PREMIER INTERIOR



Interior is natural maple wood grain laminate


PREMIER ALL PLYWOOD CABINET INTERIOR



Interior is natural maple wood grain laminate


PREMIER SHELVES



3⁄4 ” Wood grain laminated furniture board adjustable shelves with edge banding; WellLock Shelf Clips®


PREMIER ALL PLYWOOD CABINET SHELVES



¾” Laminated plywood adjustable shelves with edge banding and WellLock Shelf Clips®


PREMIER END PANEL



Wall Cabinets: ½” Natural maple wood grain laminated furniture board edge banded end panels.

Base Cabinets: ½” Natural maple wood grain, laminated furniture board end panels


PREMIER ALL PLYWOOD CABINET END PANEL



½” Unfinished plywood end panels with laminated interior (Flush Cabinet End and Matching Finished End options available)


PREMIER BACK



⅛” Wood grain printed MDF back


PREMIER ALL PLYWOOD CABINET BACK



316” Wood grain laminated plywood back


PREMIER BOTTOM



½” Wood grain laminated furniture board top and bottom


PREMIER ALL PLYWOOD CABINET BOTTOM



½” Wood grain laminated plywood top and bottom


PREMIER FACE FRAME



¾” x 1¾” Thick kiln-dried solid wood face frames; mortised and tenoned, glued and stapled at all joints


PREMIER ALL PLYWOOD CABINET FACE FRAME



¾” x 1¾” Thick kiln-dried solid wood face frames; mortised and tenoned, glued and stapled at all joints


PREMIER TOE KICK



4½”H x 3⅜”D Toe kick cut-out, ½” unfinished furniture board toe kick extends to cabinet floor for captive construction


PREMIER ALL PLYWOOD CABINET TOE KICK



4½”H x 3⅜”D Toe kick cut-out, ½” unfinished plywood toe kick extends to cabinet floor for captive construction



Website selection may not be exactly what is available. Wellborn reserves the right to make revisions without notice to product specifications. Please contact your Wellborn Dealer for Availability.
